GR1221 FBT Fiber Optic PLC Splitter 1x4 1x8 Low Polarization Dependent Loss

Brand Name : CFO

Model Number : 1*2 FBT Coupler/splitter

Certification : CE Rohs

Place of Origin : China

MOQ : 10pcs

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 5000pcs/day

Packaging Details : 1pc in blister box

Coupling Ration : 50/50

Wavelenght : 1310nm/1550nm

Connector : SC/APC

Fiber Lenght : 1meter

Warranty : 1 Year

Contact Now

1310/1550nm 50/50 Ratio 1x2 FBT fiber optic coupler splitter SC / APC Connector

Carefiber can supply various FBT couplers including 1x2, 1x3,1x4,1x8,1x16,1x32 and customerized products.

1. Quick detail:

Low Insertion

Low PDL

Compact Design

Good channel-to-channel uniformity

Wide Operating Temperature: -40°C - 85°C

2. Applications:

 Tight and fine structure
 High reliability and directivity
 Non-sensitive wavelength
 Good high temperature low temperature performance
 Convenient engineering applications
 Fine polarization
 Wide scope wavelength

3. Parameter:

Item 　Specification
Fiber Type Single-mode Multi-mode
Splitting Ratio 50/50 40/60 30/70 20/80 10/90 5/95 1/99 50/50 40/60 30/70 20/80 10/90
Operating Wavelengh(nm) 1310±40; 1550±40; 1310&1550±40; 1310&1490&1550±20 850±40; 1310±40; 850&1310±40
Insertion Loss(dB) 3.6/3.6 4.4/2.8 5.6/2.1 7.5/1.5 10.5/0.9 13.5/0.7 21.5/0.25 4.1/4.1 5.2/3.2 6.5/2.5 8.5/1.8 12/1.4
PDL(dB) ≤0.1 ≤0.15
Thermal Stability(dB) ≤0.3 ≤0.5
Directivity(dB) ≥55 ≥40
Operating Temperature -40~85ºC

Feature Of Fiber Optic Splitter

- Good uniformity and low insertion loss

- Low Polarization Dependent Loss

- Excellent Environmental Stability

- Stability Telcordia GR-1221 and GR-1209

- High Reliability and Stability

Advantages Of Fiber Optic Splitter

1. Adopt high strength stainless steel, pass salt spray test

2. Ferrule core is less than 0.2um

3. Adopt 100% new raw material, ROHS compliance

4. Low Insertion loss

5. Low PDL Compact Design

6. Good channel-to-channel uniformity

7. Wide Operating Wavelength: from 1260nm to 1650nm

8. Wide Operating Temperature: from -40℃ to 85℃

GR1221 FBT Fiber Optic PLC Splitter 1x4 1x8 Low Polarization Dependent Loss


Product Tags:

GR1221 FBT Fiber Optic PLC Splitter



1x8 Fiber Optic PLC Splitter



GR1221 fiber optic splitter


Wholesale GR1221 FBT Fiber Optic PLC Splitter 1x4 1x8 Low Polarization Dependent Loss from china suppliers

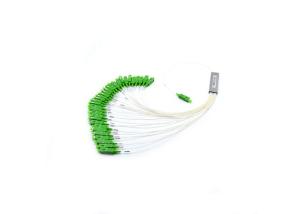

GR1221 FBT Fiber Optic PLC Splitter 1x4 1x8 Low Polarization Dependent Loss Images
