PE Bag Packing for SC UPC 3.0mm Connector Fiber Optic Patch Cord with Beige Housing for FTTH
1. Product Description:
SC stands for "Standard Connector", which is a precision single-mode and multi-mode fiber optic connector.

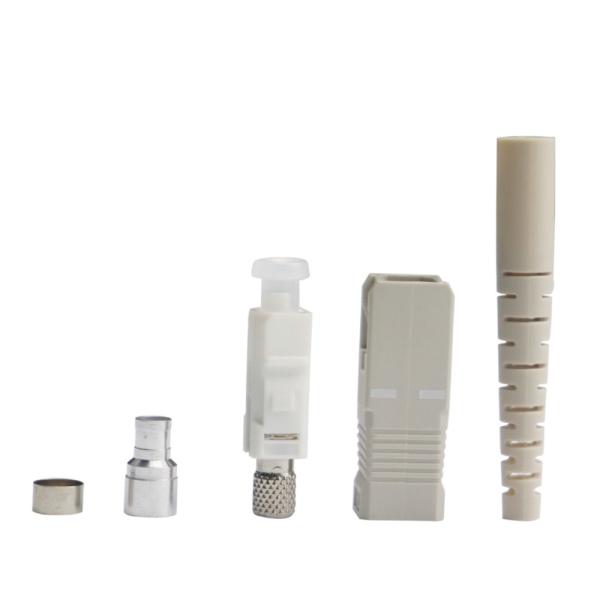

The SC connector adopts a circular shape and has a push-in connection method. It has bidirectional connection capabilities and can realize bidirectional transmission of optical signals in fiber optic communication systems. The external structure of the SC connector consists of a fixed insertion sleeve and a housing with insertion and withdrawal mechanisms. Inside the insertion sleeve is a circular ceramic or metal sleeve that positions and protects the end of the fiber.
Carefiber offers a wide selection of fiber optic Connectors. Our selection includes SC, FC, LC, ST, E-2000, MTRJ, MU, MTP, MPO, DIN, SMA-905/906, and D4 models. What differentiates us is that our patch cord connectors have been designed with a utility patent. This provides a unique solution to fiber connection.
2. Technical Parameters:
| Project | Spec. | Standard |
| Operation loss | 1260～1650nm | GR-326-CORE； IEC 61300 |
| Insertion loss | ≤0.3dB(Typical value:0.2dB) |
| Return loss | ≥60dB(APC)≥50dB(UPC) |
| Repeatability | ≤0.2dB |
| Interchangeability | ≤0.2dB |
| Mechanical Endurance | ≥500 Times |
| Working temperature | -40～+85℃ |
3. Features:
1. Low insertion loss: The design of the SC connector reduces the insertion loss of optical signals and ensures high-quality signal transmission.
2. High-precision alignment: SC connectors adopt a precise alignment mechanism to ensure accurate docking between optical fibers and reduce signal attenuation and loss.
3. Convenient to use: The insertion and withdrawal mechanism of the SC connector is easy to operate, making connection and disconnection simple and fast.
4. Applications:
1. Data Transmission Networks
2. Image transmission Networks
3. Optical test instrument
4. Photoelectric automatic control system
5. Carefiber Services:
1. Any questions will be replied to within 24 hours.
2. Professional manufacturer, Welcome to visit our company.
3. 100% test before shipping.
4. OEM/ODM is available (As required print logo and customized color).
5. Fast delivery time(2 days for samples,order 3~7 days for bulk production)
6. FAQ:
Q1: What is a Fiber Optic Patch Cord?
A: A Fiber Optic Patch Cord is a length of fiber optic cable terminated with a connector on each end, used to connect network devices like switches, routers, media converters, etc. The brand name is CFO and the place of origin is China.
Q2: What are the types of Fiber Optic Patch Cord?
A: There are two types of Fiber Optic Patch Cord: single-mode and multimode. Single-mode Fiber Optic Patch Cord is used for long-distance communication. Multimode Patch Cord is used for short-distance communication.
Q3: What are the advantages of Fiber Optic Patch Cord?
A: Fiber Optic Patch Cord has many advantages, including high speed and large bandwidth, low power consumption, low signal loss, and electromagnetic interference immunity.
Q4: What kind of connector is used for a Fiber Optic Patch Cord?
A: The most common connectors used in Fiber Optic Patch Cord are LC, SC, ST, and FC. They are used to connect network devices like switches, routers, media converters, etc.
Q5: What is the length of the Fiber Optic Patch Cord?
A: The length of Fiber Optic Patch Cord varies from 0.5m to 100m, depending on the application.
